Looking at a parabola and going off on 4 tangents

As the curriculum sequence is normally presented, we don’t usually consider tangent lines to curves until Calculus. As a result, taking a derivative might seem like the only way to find a tangent. Interestingly, that’s very far from the case. So here I’ll demonstrate 3 other ways to do it without Calculus

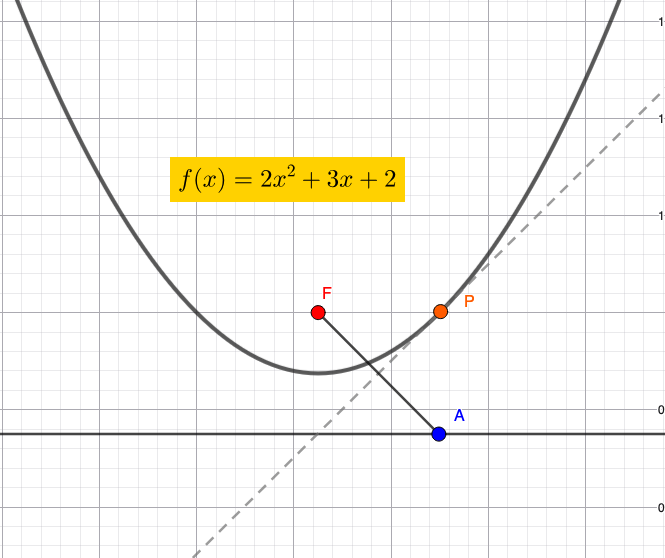

Our test parabola $ 2x^2 + 3x + 2$ and the point P at $(-\frac{1}{2},1)$

Algebra

With only the tools from Algebra I, we can already attack this problem.

1. First let’s assume there is some tangent line $y = mx + b$ that goes through b. In this case its more convenient to use point slope notation. $ m = \frac{y - 1}{x + \frac{1}{2}}$

2. We want this to intersect the parabola so we set the two expressions equal to each other: $mx + \frac{m}{2} + 1 = 2x^2 + 3x + 2$

3. That simplifies to: $0 = 2x^2 + (3-m)x + (1 - \frac{m}{2})$

4. Now we want a single solution to this equation since the tangent intersects only once and to do that we need the discriminant to be 0. That works out to $ (3-m)^2 - 4 \cdot 2 \cdot (1 - \frac{m}{2}) = 0$

5. Conveniently (why?) that quadratic simplifies to $ (m-1)^2 = 0$. We can now plug the slope of 1 back into our equation in step 1. This gives us $1 = \frac{y - 1}{x + \frac{1}{2}}$ or reorganizing a bit $y=x + \frac{3}{2} $

Geometry via the directrix-focus formulation.

In my last post post I delved into how the perpendicular bisector of the segment between the focus and a perpendicular down to the directrix is also the tangent line.

For this equation, the focus is at $(-\frac{3}{4}, 1)$ and the directrix is $y= \frac{3}{4}$ The slope of this segment is $ \frac{1 - \frac{3}{4}}{-\frac{3}{4} + \frac{1}{2}} = -1$

The perpendicular to this segment is its inverse reciprocal and has a slope of 1. So we can again utilize point slope form to get $1 =\frac{y -1}{x + \frac{1}{2}}$ This simplies again to $ y = x + \frac{3}{2}$

Polynomial division

Its not as widely known but you can find the tangent line for any polynomial at $x=x_0$ by dividing by $(x-x_0)^2$ See: post with discussion about this

So in this case since we’re look at $x_0 = -.5$.

\[\begin{array}{rl} 2 \phantom{0} \\[-3pt] x^2 + x + .25 \enclose{longdiv}{2x^2 + 3x + 2} \phantom{0} \\[-3pt] \underline{-(2x^2 + 2x + .5)} \\[-3pt] x + 1.5 \phantom{0} \\[-3pt] \end{array}\]

Or in other words the tangent line is $ y = x + \frac{3}{2}$

Calculus

Finally for comparison via the derivative:

$f’(x) = 4x + 3$ and $f’(.5) = 1$ That’s consistent with all of above and if plugged into point slope from will give us the equation $ y = x + \frac{3}{2}$ for the fourth time
